Quick Details

  • Condition: New
  • Type: Straightener Feeder & Uncoiler
  • Use: Sheet
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: YOUYI
  • Model Number: GO series
  • Voltage: 220V / 110V
  • Power(W): 4KW
  • Dimension(L*W*H): 1000*1850*1400mm
  • Weight: 900kg
  • Certification: ISO 9001
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • ISO9001 registered: UKAS QULITY MANAGEMENT registered
  • machine: machine for coil metal sheet straightening
  • Color: White
  • Material Max. width: 300
  • Material thickness: 0.5-2.5mm
  • coil O.D: 1200mm
  • coil I.D: 450-530mm

Packaging & Delivery

Packaging Details: stretch film and Wooden Case
Delivery Detail: 10 Days

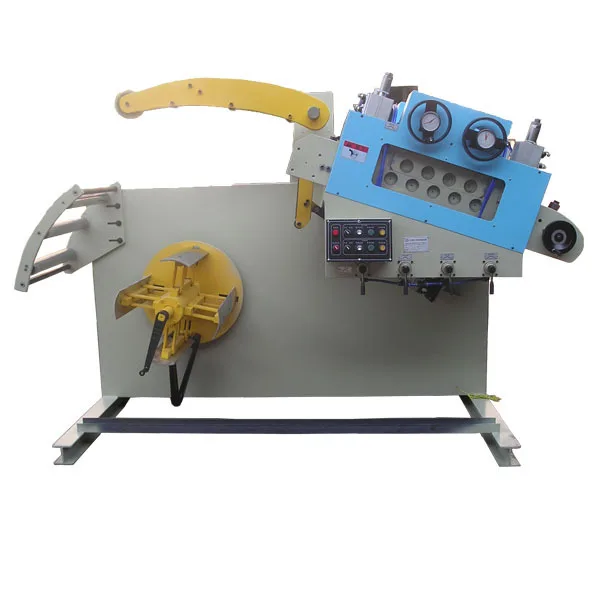

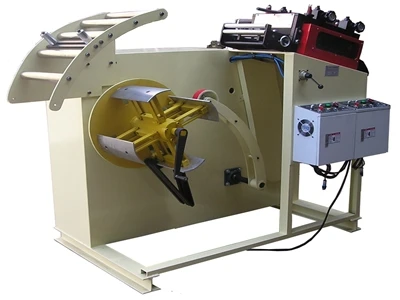

2 in 1 Chinese  uncoiler and straightener machine



Product Description


Features of 2 in 1 Chinese  uncoiler and straightener machine

1.The 2 in 1 structure saves space and increase the straightening precision.
2.The fine balance device increase the straightening accuracy.
3.The rolls are hollow with hard chrome plated.

4.The uncoiler and the straightener are controlled separately by electrical boxes,which protect the materials from damage.



Parameters

Model

 GO-200GO-300GO-400 GO-500 GO-600

Material Width

 200 mm300 mm400 mm  500 mm  600 mm

Max.Thickness

 0.5-2.5 mm0.5-2.5 mm0.5-3.0 mm0.5-3.0 mm0.5-3.0 mm

Material I.D.

 450-530 mm

Material O.D.

 1200 mm

Material Weight

 800 Kg1000 Kg  1500 Kg  2000 Kg  2000 Kg

Expand Type

Hand-Operated

Motor

 1 HPHP  HP  HP  HP

Dimension(L*W*H) m

 1*1.85*1.41.1*1.85*1.4 1.2*1.35*1.41.3*1.85*1.4 1.5*1.85*1.4
Weight  800 kg900 kg1000 kg  1100 kg  1200 kg







Other models

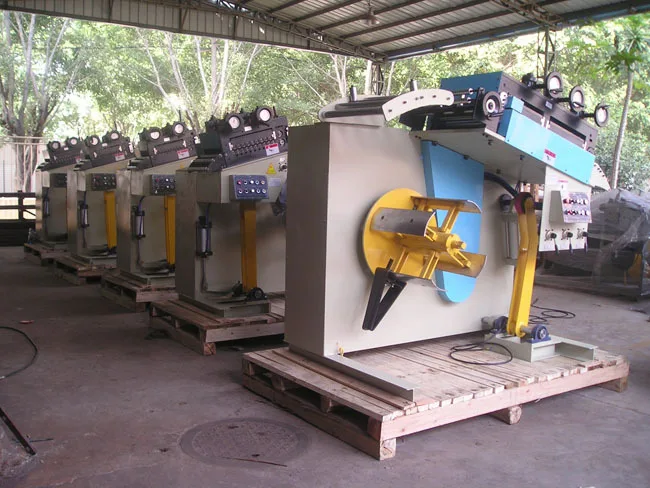

Workshop
Company Information
We specialize in manufacturing and marketing press peripheral auto machines and package plants of presses. Our company was established in 1999. The area of the factory is more than 5,000 square meters. And we have over 15 years' manufacturing experience, and offer considerate service to our customers.





WHY YOUYI:

More than 15 years' experience of designing, manufacturing

Our products are ISO 9001 certified.



WHERE  ARE WE

No.60 New Asia Park, Lincun, Tangxia Town, Dongguan City, Guangdong Province





Packaging: wooden cases or customized







FAQ



1): How long is the warranty time ?



  we have 1 year warranty. If any quality problem , We will be happy to help you for free .



2): Do you sell only standard machines?



  No, most of our machines are built according to customers specifications, using top brand name components.
